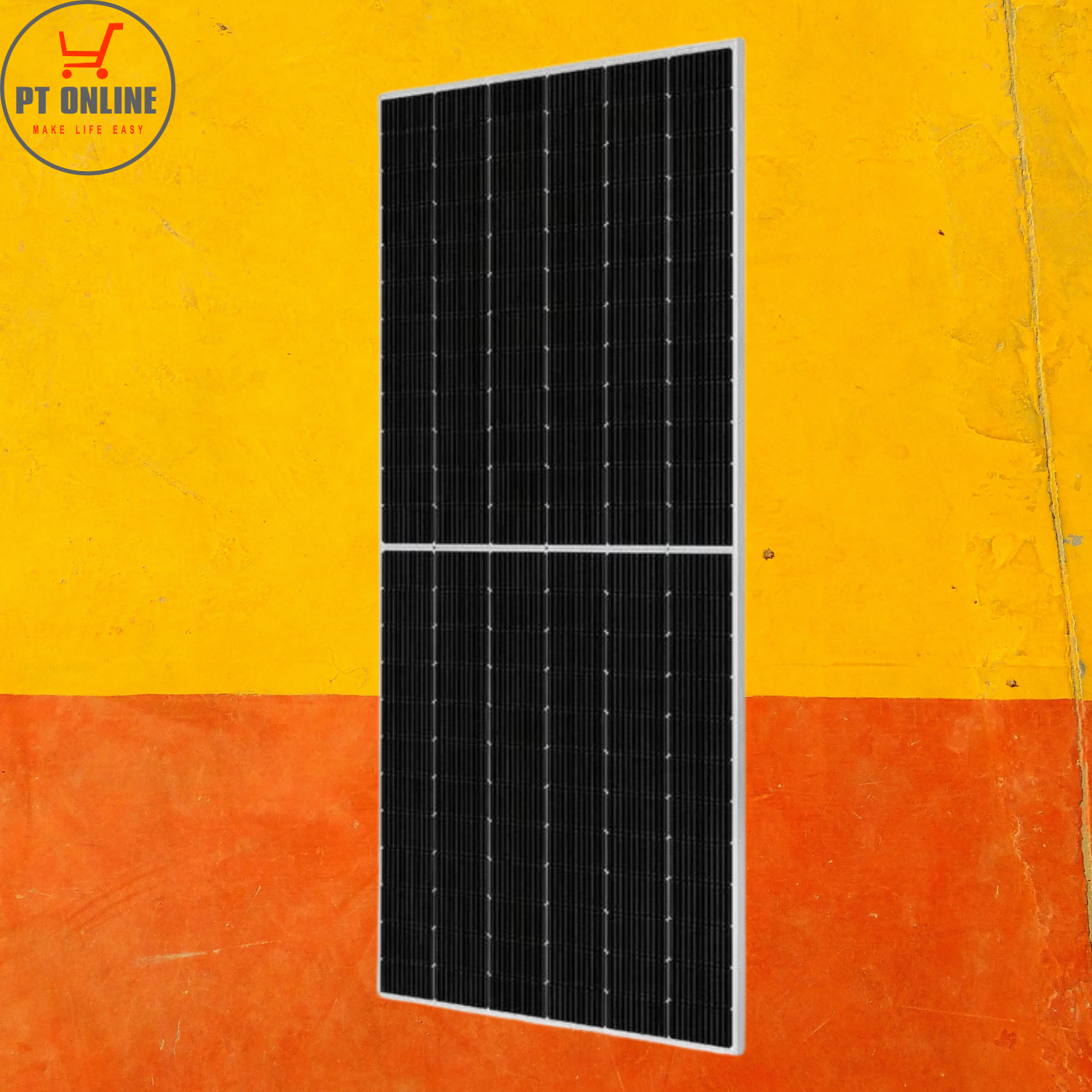

Jinko 460w Tier 1 Tiger Bifacial Mono Solar Panel JKM460M-7RL3-TV

Tiling Ribbon (TR) Technology

Positive Power Tolerance Of 0-+3%

ISO9001:2015, ISO14001:2015, ISO45001:2018
certified factory
IEC61215, IEC61730 certified product

Key Features

TR technology + Half Cell
TR technology with Half cell aims to eliminate the cell gap to
increase module efficiency (bi-facial up to 20.43%

9BB instead of 5BB
9BB technology decreases the distance between bus bars and
finger grid line which is benefit to power increase.

Higher lifetime Power Yield
2.5% first year degradation,
0.55% linear degradation

Best Warranty
12 year product warranty,
30 year 30 year linear power warranty

Avoid debris, cracks and broken gate risk effectively
9BB technology using circular ribbon that could avoid debris,
cracks and broken gate risk effectively

Severe Weather Resilience
Certified to withstand: wind load (2400 Pascal) and snow load (5400
Pascal).

Specifications  :

Maximum Power (Pmax) 460Wp

Maximum Power Voltage (Vmp) 43.32V

Maximum Power Current (Imp) 10.62A

Open-circuit Voltage (Voc) 51.90V

Short-circuit Current (Isc) 11.35A

Module Efficiency STC (%) 20.21%

Size : 2205 x 1032 x 35mm 25 Kg

Warranty:

12 Year Product Warranty 30 Year Linear Power Warranty
0.55% Annual Degradation Over 30 years
